HOME/ PRODUCTS/ USB Type C/ U23005-02/

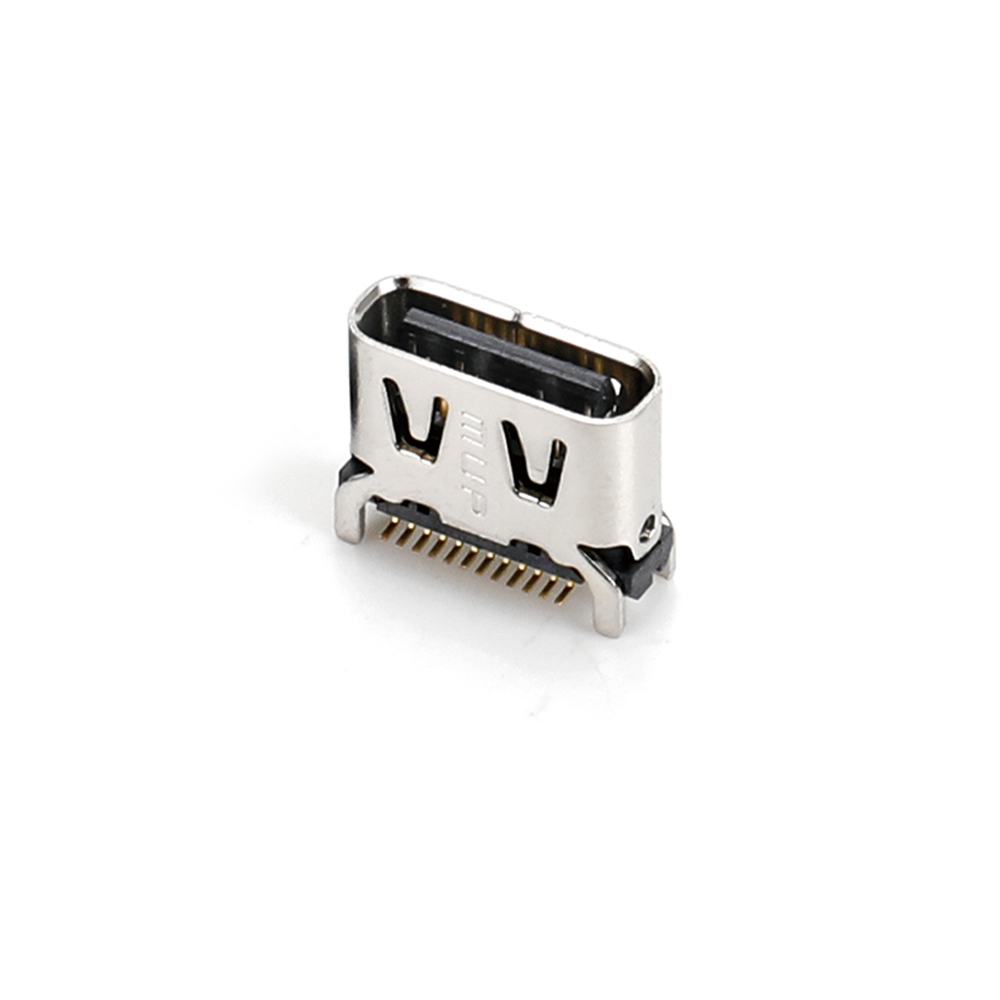

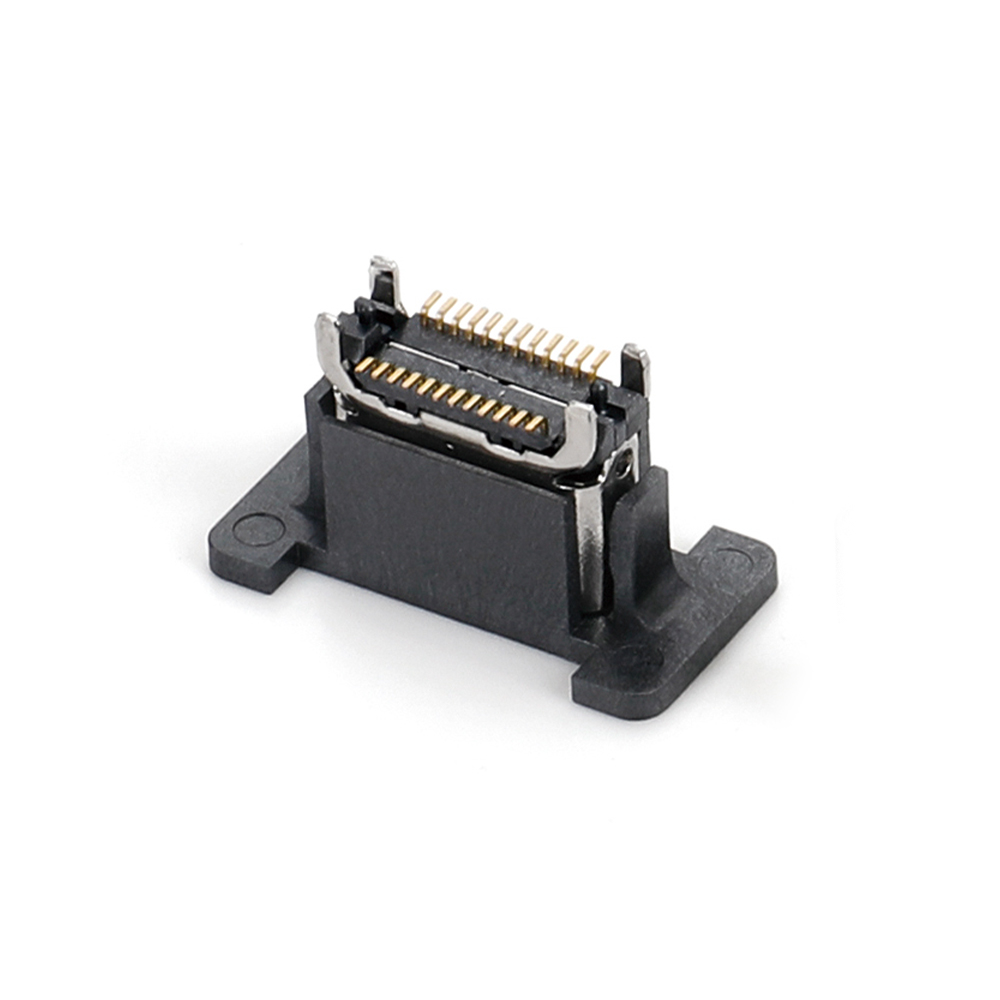

U23005-02

View Drawings

Add to compare

Request Samples

Share‌

WeChat

Weibo

Specifications‌

Desc.

USB3.1 Gen2 PD 100W Vertical H6.50

Type

Vertical F

Pins

24

Shell Mount

Dual-row SMT

L*W*H mm

9.14*3.36*7.6
CH mm

_

Ins. Depth

4.45

On Board

6.50

Mid Mount

_

Pin Length

0.60
Shell Legs

1.10

MATL

LCP

G/P

G/F

Rating

★★★

Drawing
