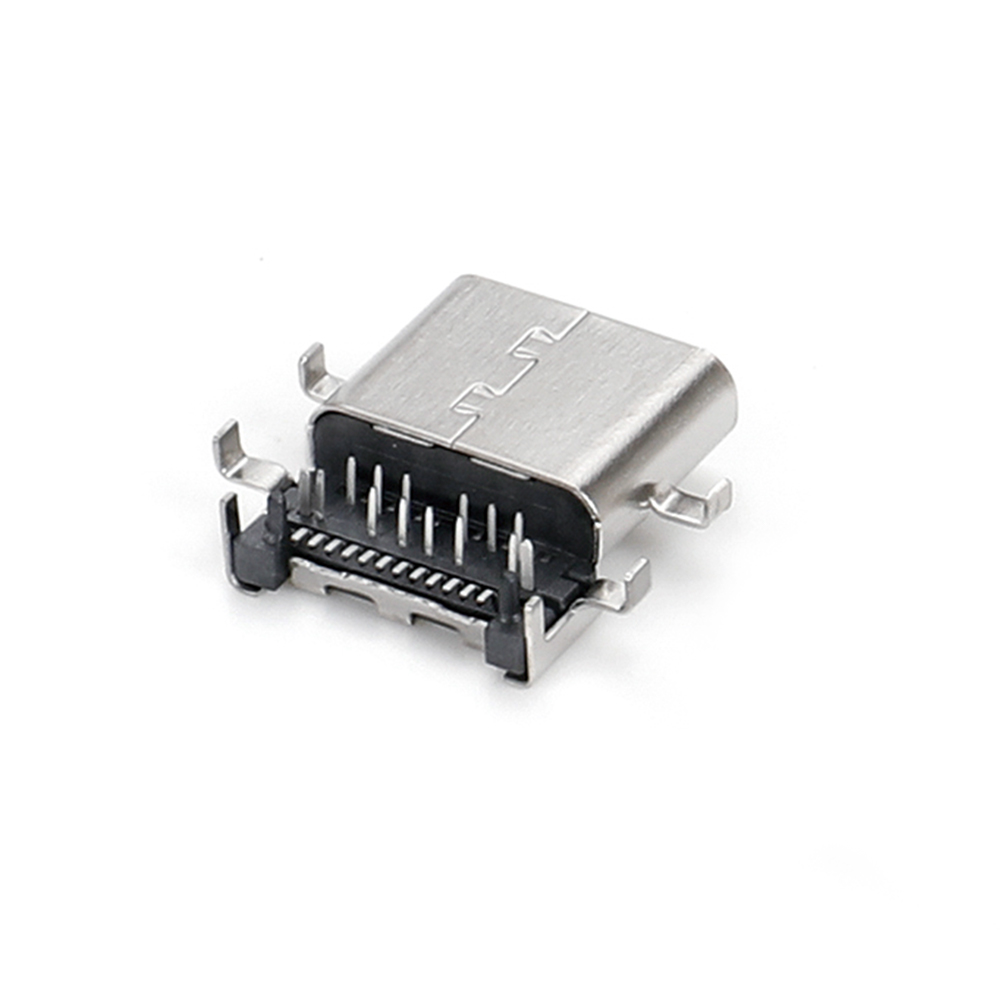

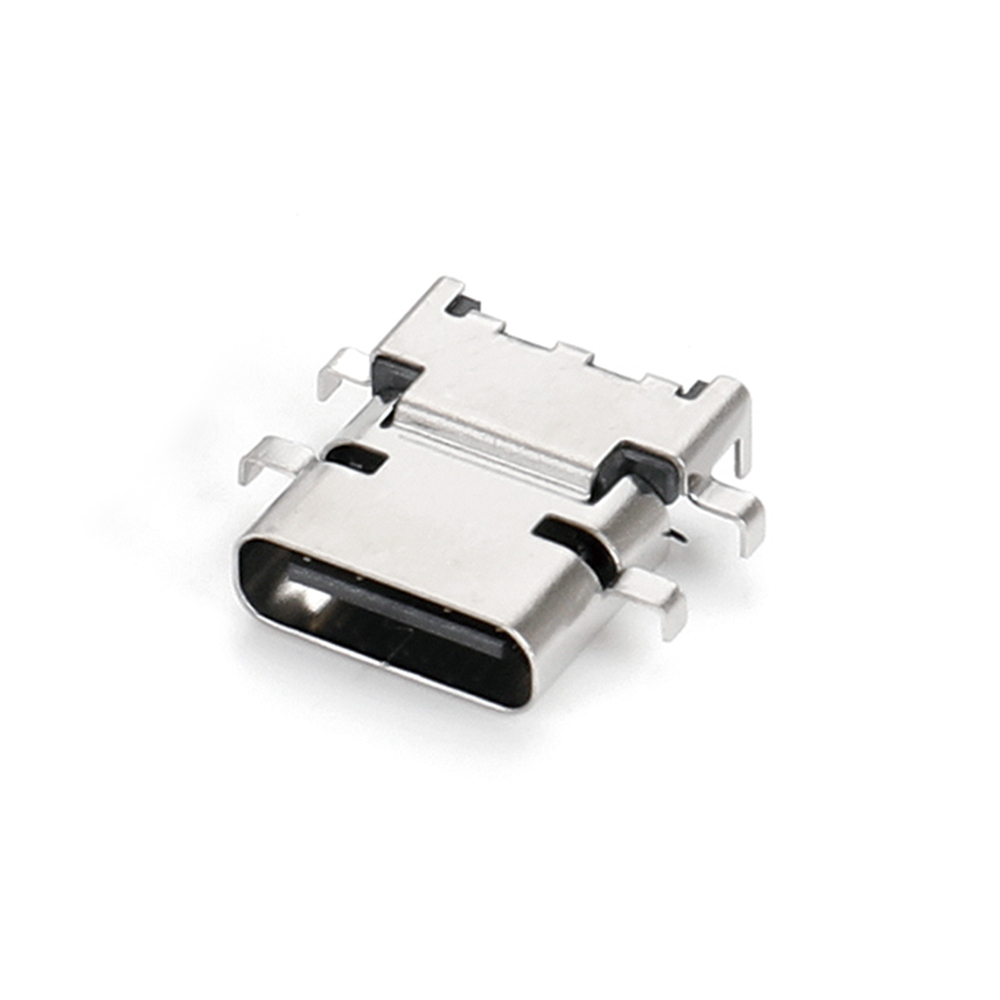

U22205-01
View Drawings Add to compare Request Samples
WeChat
Weibo
https://www.mupconnec...
Copy link
Specifications‌
  • Desc.
    USB3.1 Gen2 PD 100W shell vs airplane frame
    Type
    Horizontal F
    Pins
    24
    Shell Mount
    DIP+SMT
    L*W*H mm
    10.30*12.15*3.64
  • CH mm
    CH0.50
    Ins. Depth
    5.00
    On Board
    1.66
    Mid Mount
    1.98
    Pin Length
    1.20
  • Shell Legs
    1.00
    MATL
    LCP
    G/P
    G/F
    Rating
    ★★★
Drawing
