HOME/ PRODUCTS/ USB Type C/ U22007-01/

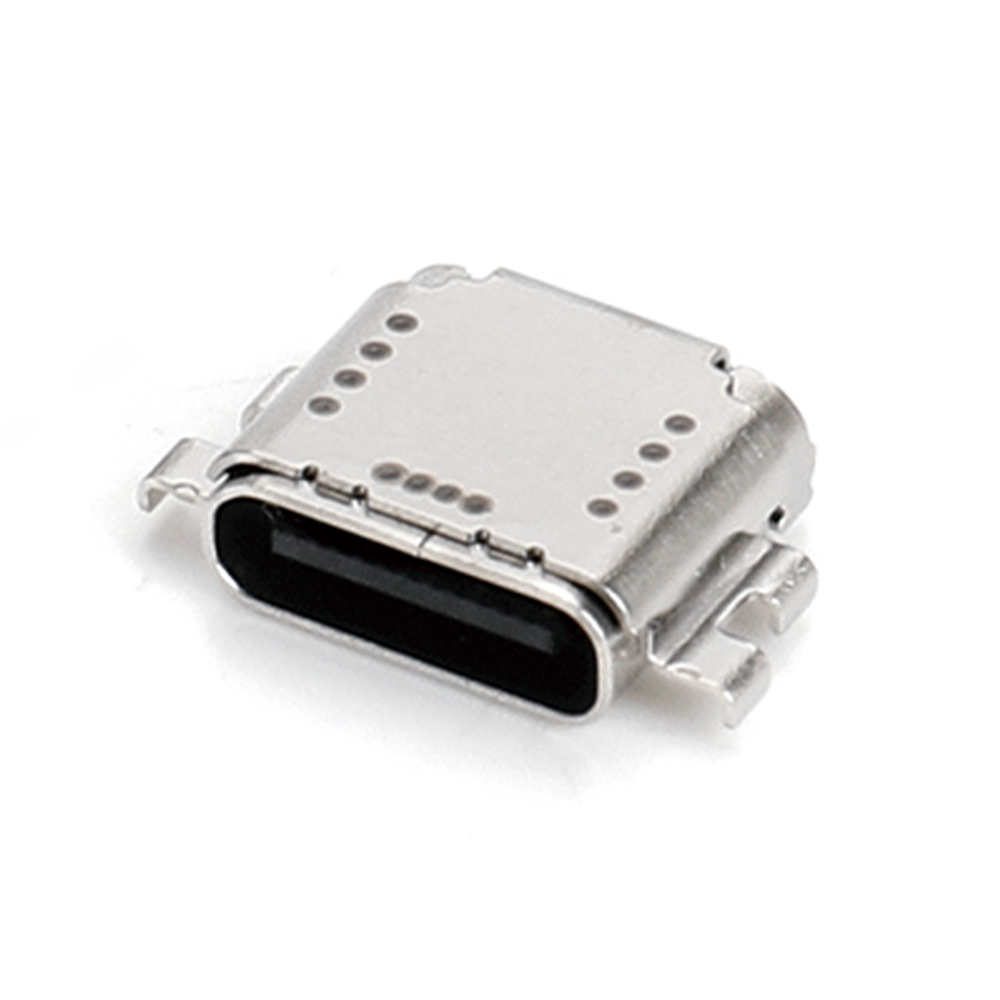

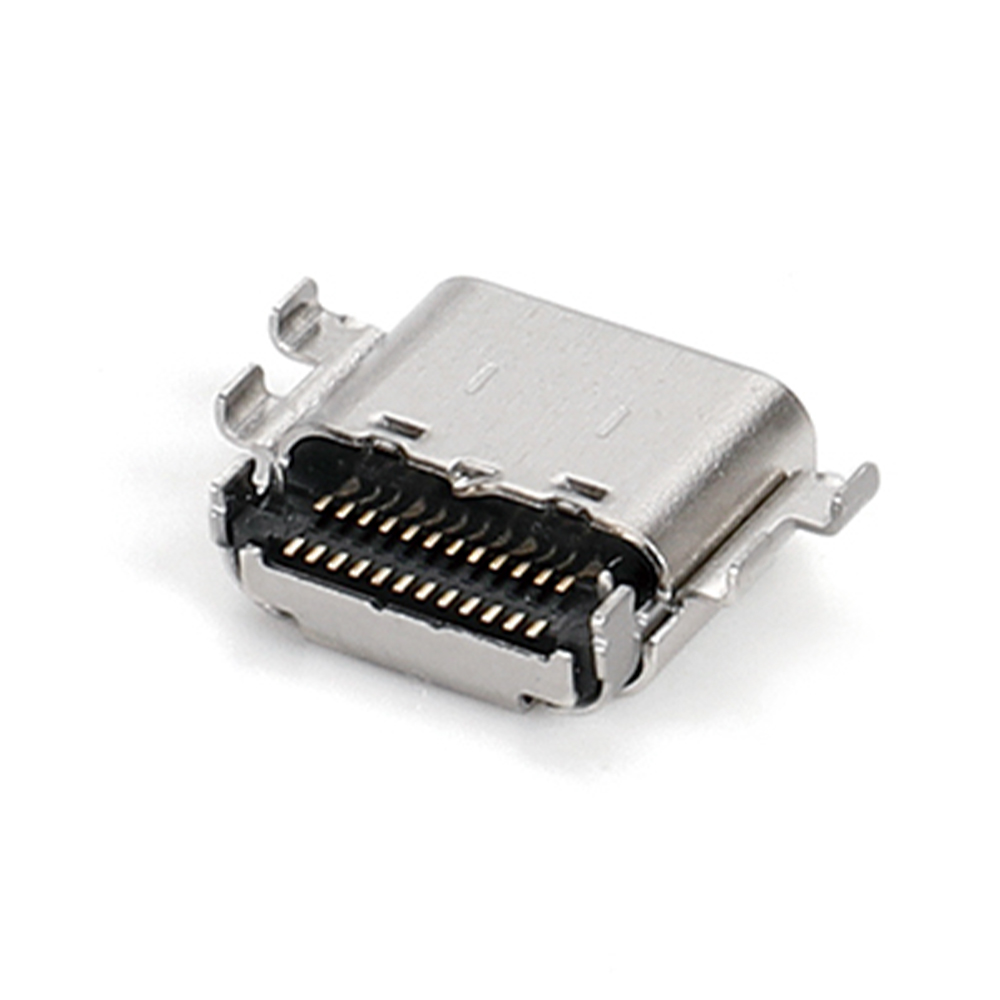

U22007-01

View Drawings

Add to compare

Request Samples

Share‌

WeChat

Weibo

Specifications‌

Desc.

USB3.1 Gen2 PD 100W Dual-Shell

Type

Horizontal F

Pins

24

Shell Mount

SMT

L*W*H mm

8.21*12.84*3.41
CH mm

CH0.5

Ins. Depth

4.70

On Board

2.33

Mid Mount

1.08

Pin Length

0.40
Shell Legs

0.80

MATL

NYL

G/P

3

Rating

★★★

Drawing
