HOME/ PRODUCTS/ USB Type C/ U22401-09/

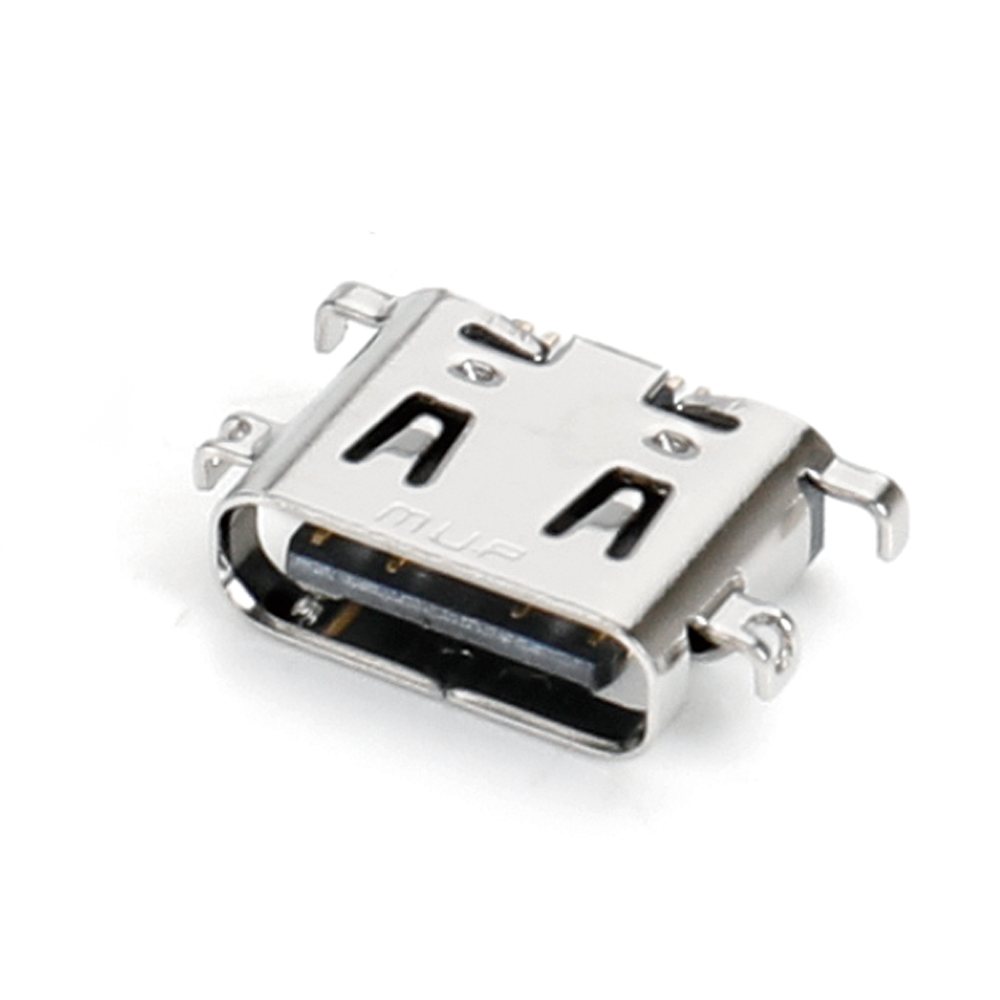

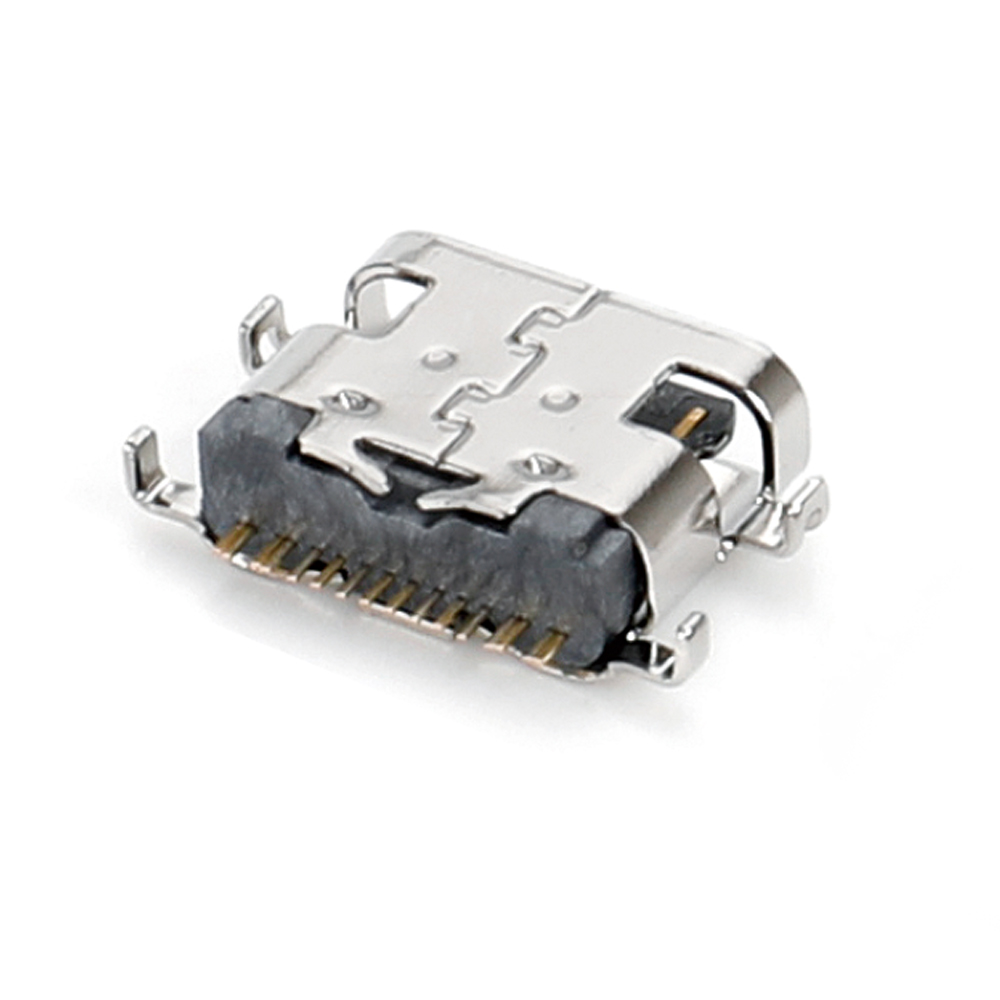

U22401-09

View Drawings

Add to compare

Request Samples

Share‌

WeChat

Weibo

Specifications‌

Desc.

USB2.0 PD 100W mid-mount 1.20

Type

Horizontal F

Pins

16

Shell Mount

Single-row SMT

L*W*H mm

6.35*9.58*3.46
CH mm

CH0.38

Ins. Depth

4.60

On Board

1.96

Mid Mount

1.20

Pin Length

0.70
Shell Legs

0.85

MATL

LCP

G/P

3

Rating

★★★

Drawing
