HOME/ PRODUCTS/ USB Type C/ U20409-02/

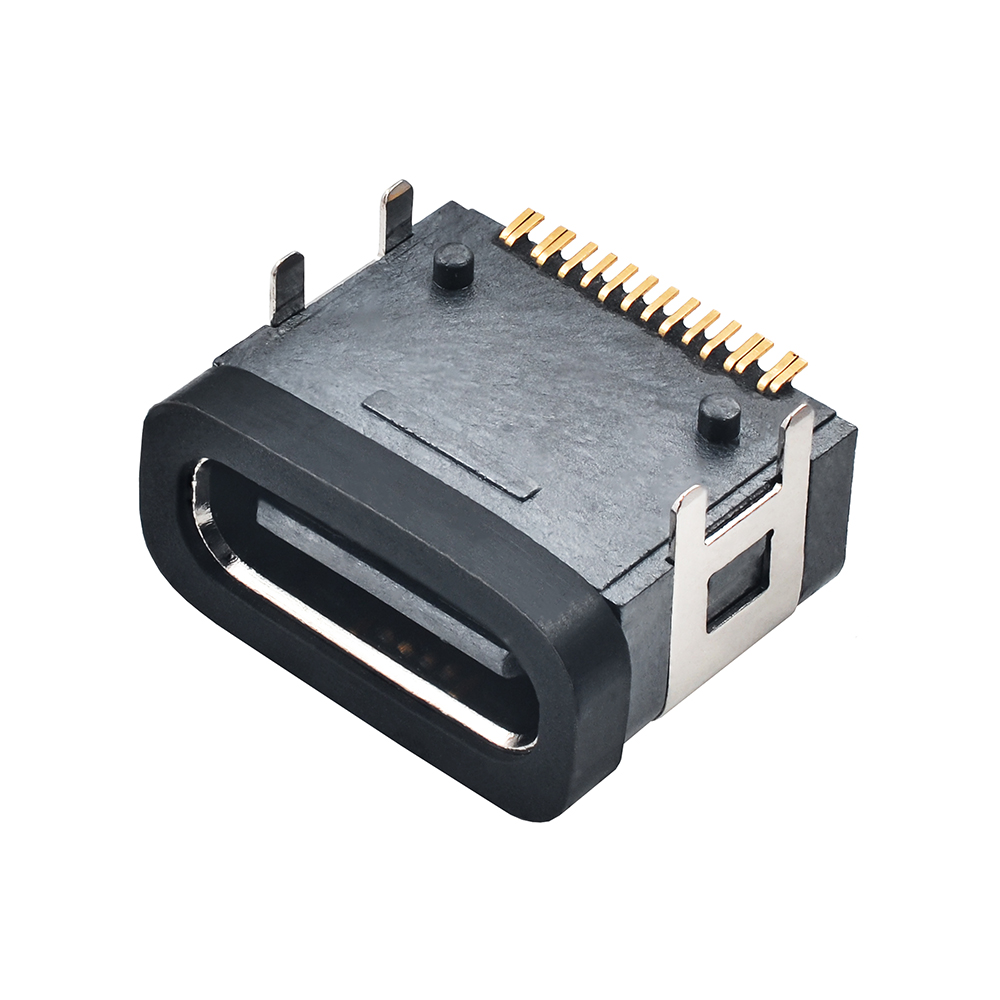

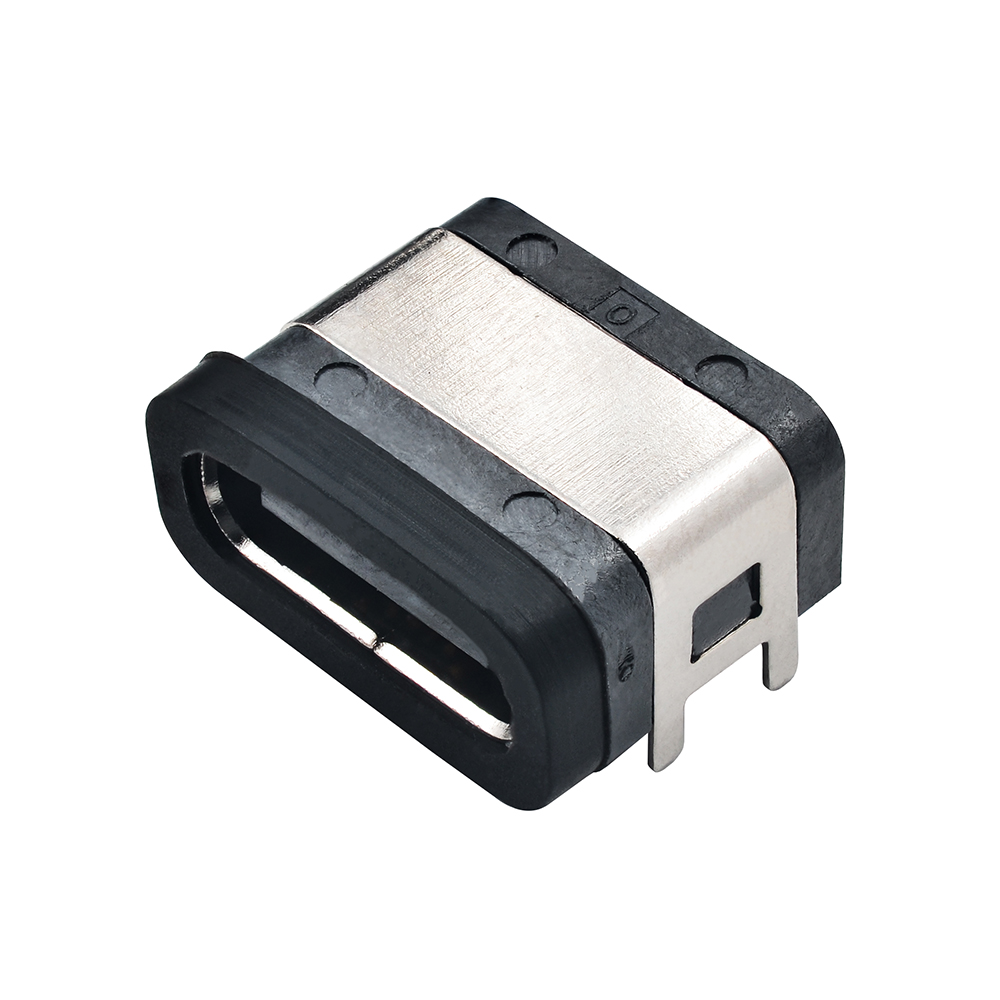

U20409-02
View Drawings Add to compare Request Samples
WeChat
Weibo
https://www.mupconnec...
Copy link
Specifications‌
  • Desc.
    USB2.0 PD 100W Waterproof IPX7
    Type
    Waterproof F
    Pins
    16
    Shell Mount
    Single-row SMT
    L*W*H mm
    7.85*9.99*4.31
  • CH mm
    CH2.38
    Ins. Depth
    4.60
    On Board
    4.66
    Mid Mount
    0.00
    Pin Length
    0.50
  • Shell Legs
    1.20
    MATL
    LCP
    G/P
    3
    Rating
    ★★★★★
Drawing
