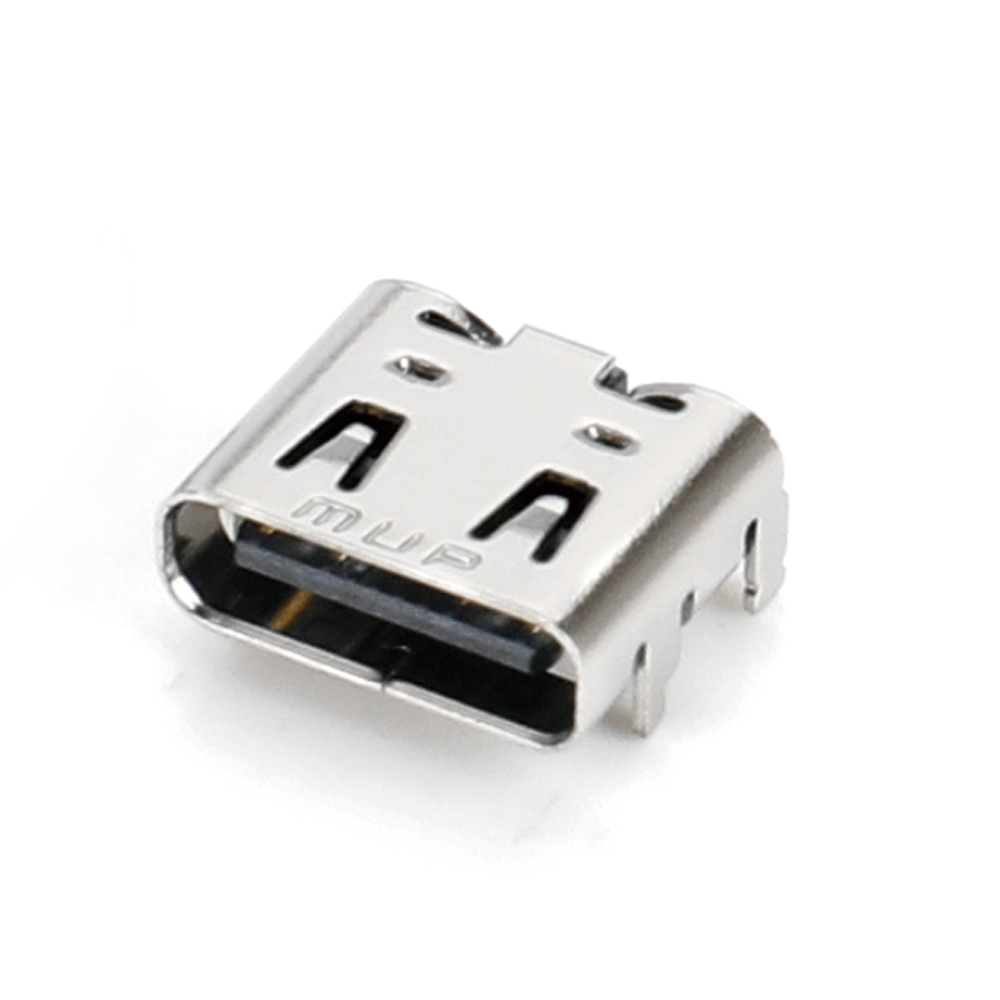

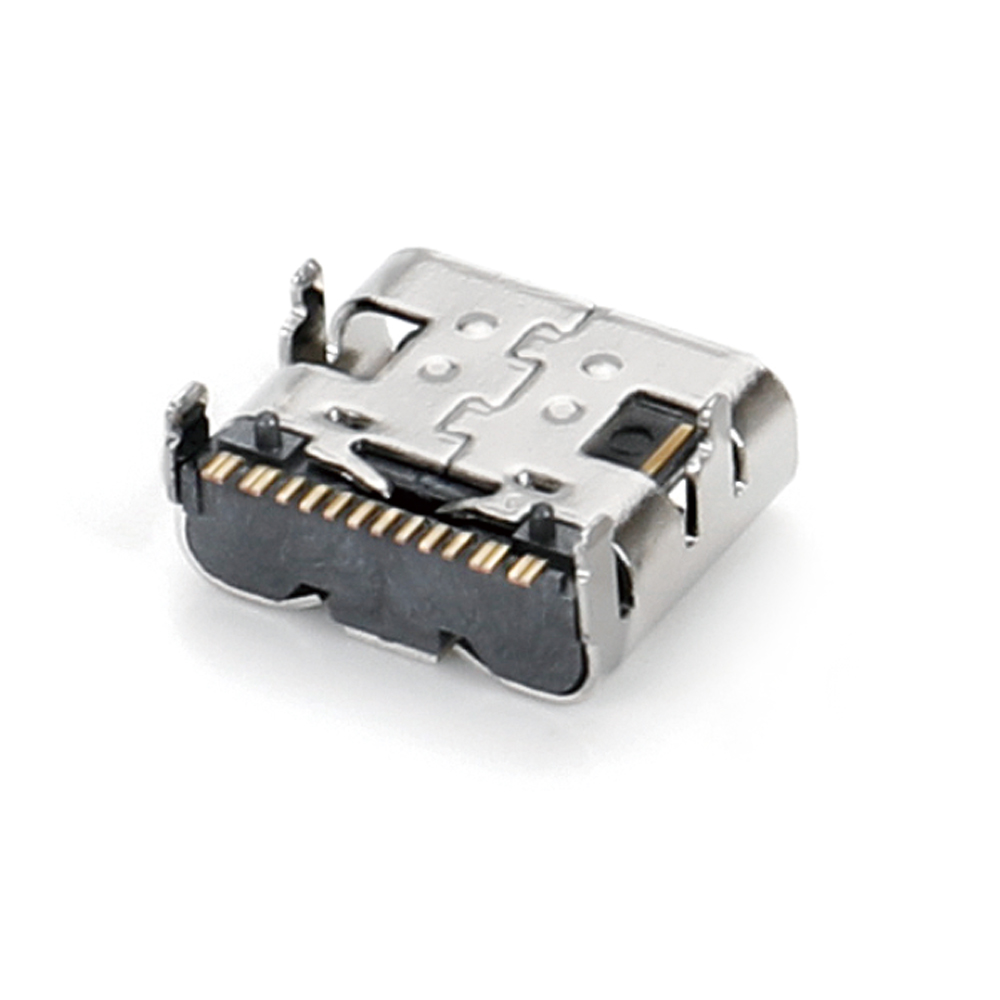

U20401-03
View Drawings Add to compare Request Samples
WeChat
Weibo
https://www.mupconnec...
Copy link
Specifications‌
  • Desc.
    USB2.0 PD 100W L7.35 shell Length 0.9
    Type
    Horizontal F
    Pins
    16
    Shell Mount
    Single-row SMT
    L*W*H mm
    7.35*8.94*3.26
  • CH mm
    CH1.68
    Ins. Depth
    4.80
    On Board
    3.26
    Mid Mount
    0.00
    Pin Length
    0.40
  • Shell Legs
    0.90
    MATL
    LCP
    G/P
    G/F
    Rating
    ★★★★★
Drawing
