HOME/ PRODUCTS/ USB Type C/ U20417-01/

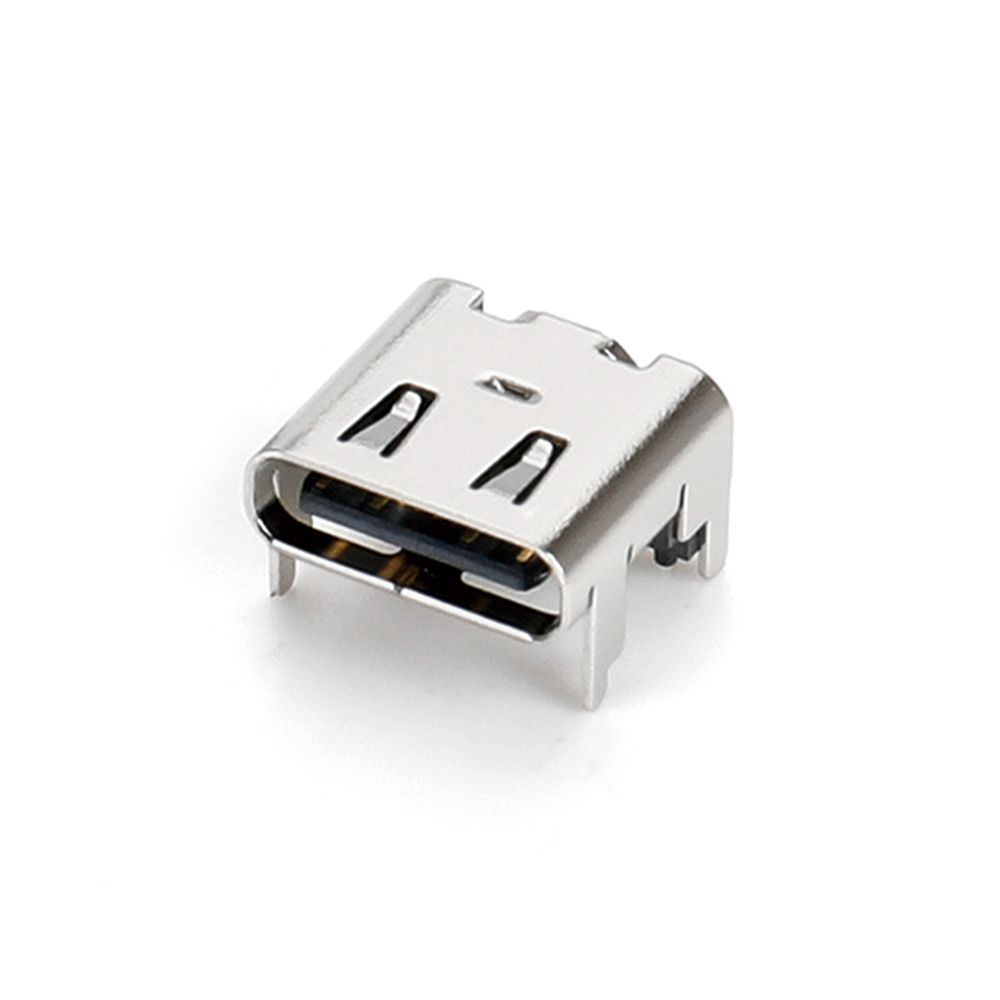

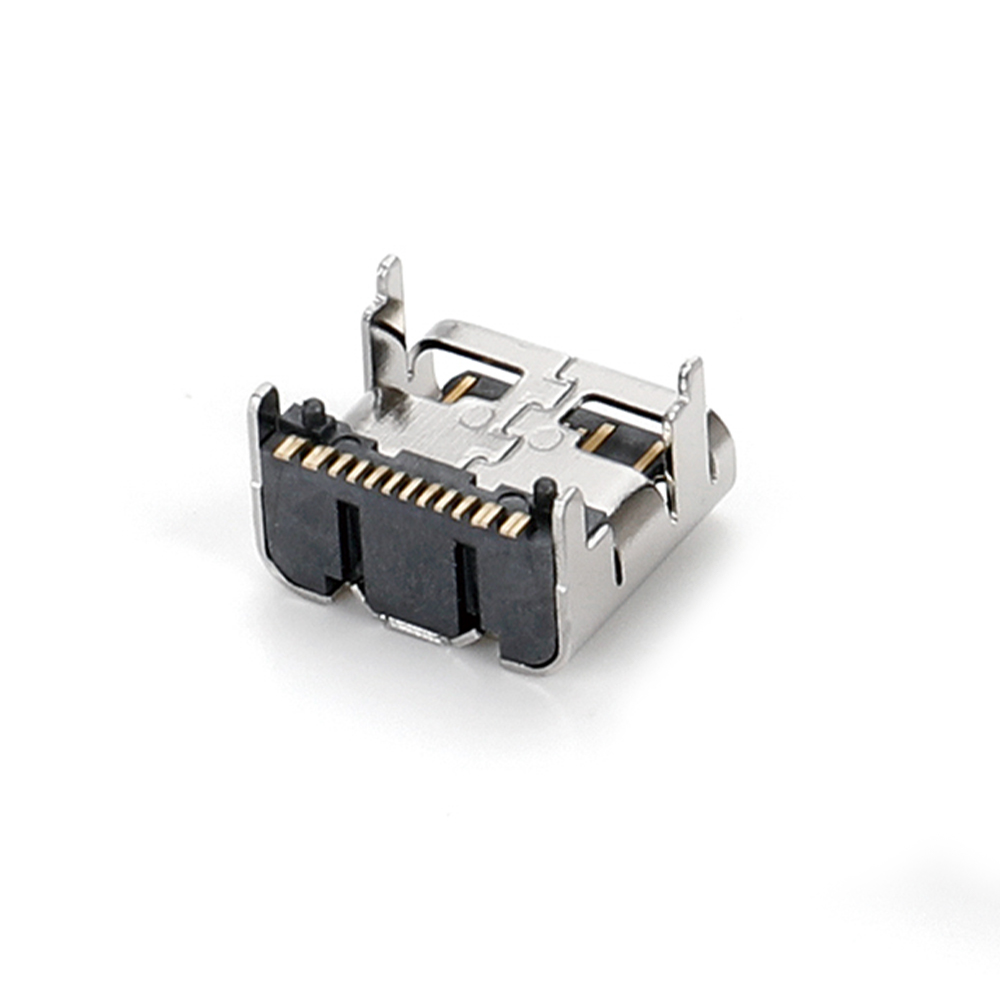

U20417-01

View Drawings

Add to compare

Request Samples

Share‌

WeChat

Weibo

Specifications‌

Desc.

USB2.0 PD 100W Stacked height 1.5

Type

Horizontal F

Pins

16

Shell Mount

Single-row SMT

L*W*H mm

8.0*8.94*4.76
CH mm

CH3.18

Ins. Depth

4.70

On Board

4.76

Mid Mount

0.00

Pin Length

0.80
Shell Legs

0.90

MATL

LCP

G/P

G/F

Rating

★★★

Drawing
