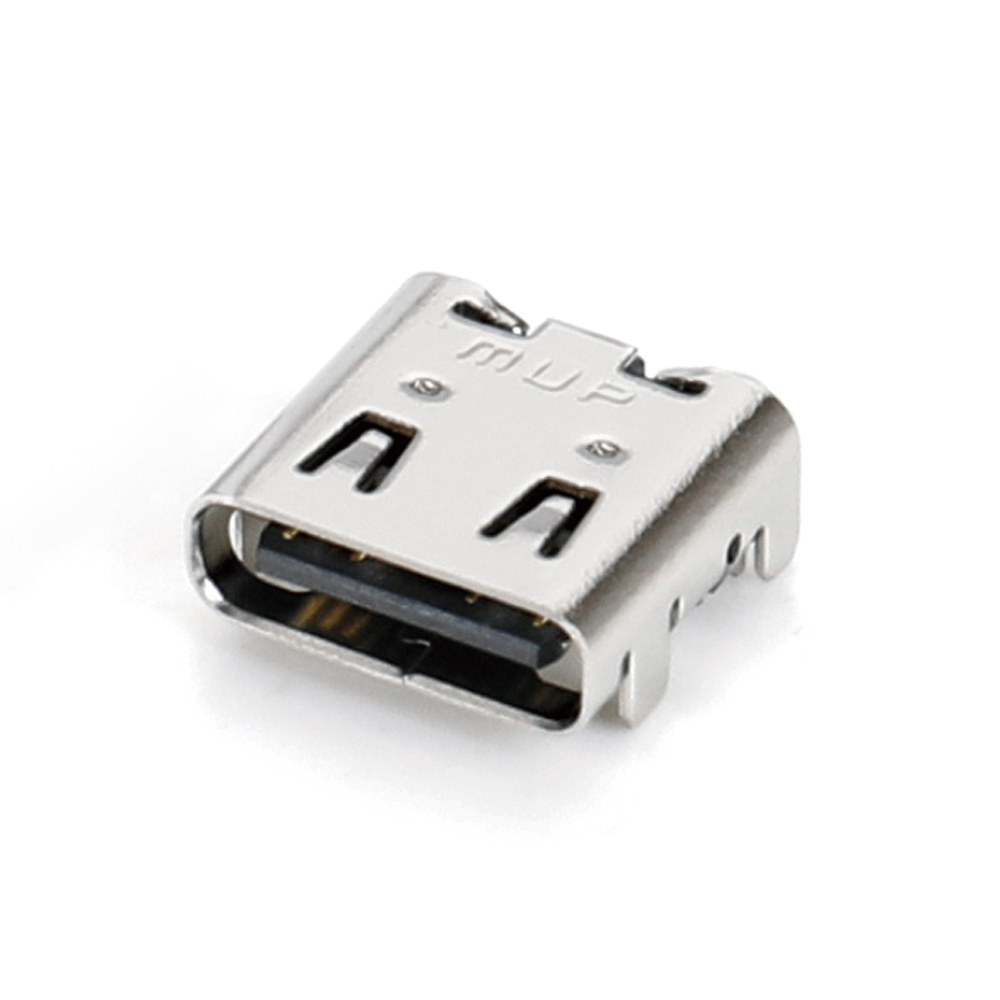

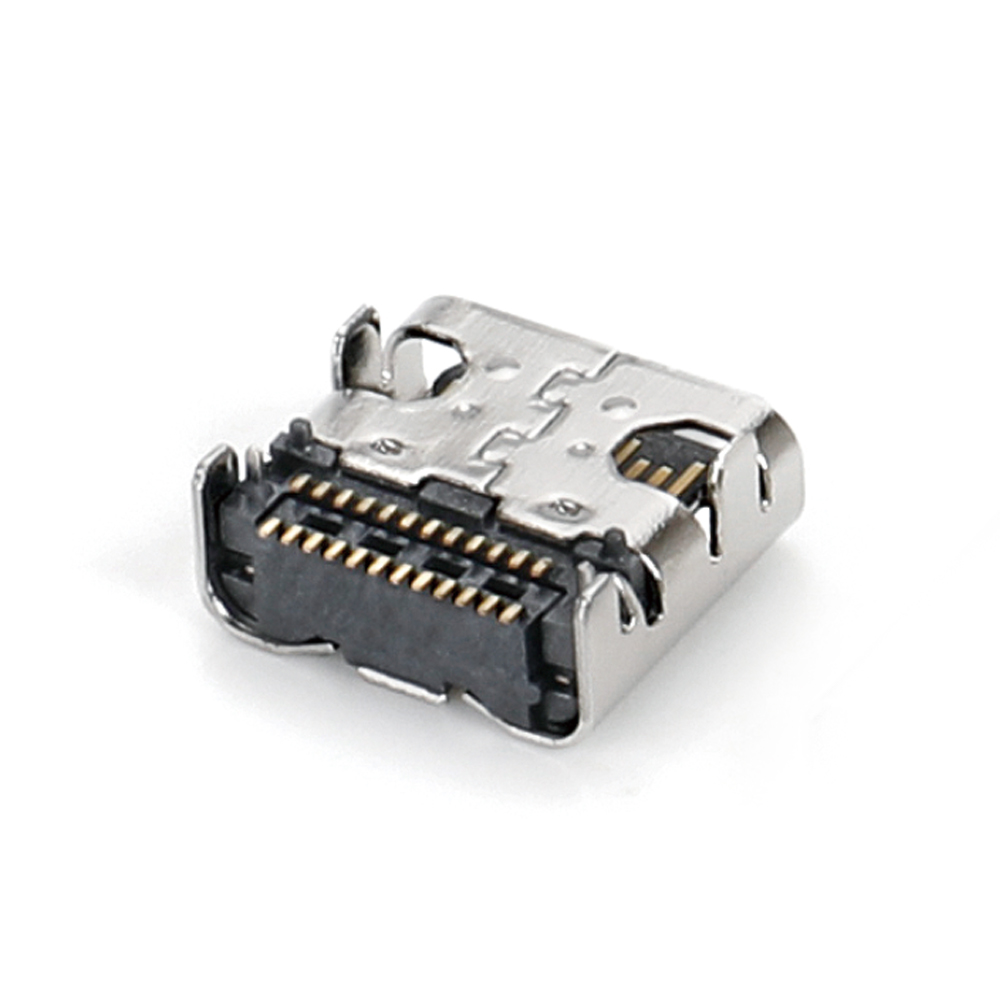

U20201-18
View Drawings Add to compare Request Samples
WeChat
Weibo
https://www.mupconnec...
Copy link
Specifications‌
  • Desc.
    USB3.1 Gen2 PD 100W shell with spring
    Type
    Horizontal F
    Pins
    24
    Shell Mount
    Dual-row SMT
    L*W*H mm
    8.0*8.94*3.16
  • CH mm
    CH1.63
    Ins. Depth
    4.70
    On Board
    3.21
    Mid Mount
    0.00
    Pin Length
    0.40
  • Shell Legs
    0.70
    MATL
    LCP
    G/P
    G/F
    Rating
    ★★★
Drawing
