HOME/ PRODUCTS/ USB Type C/ U20404-02/

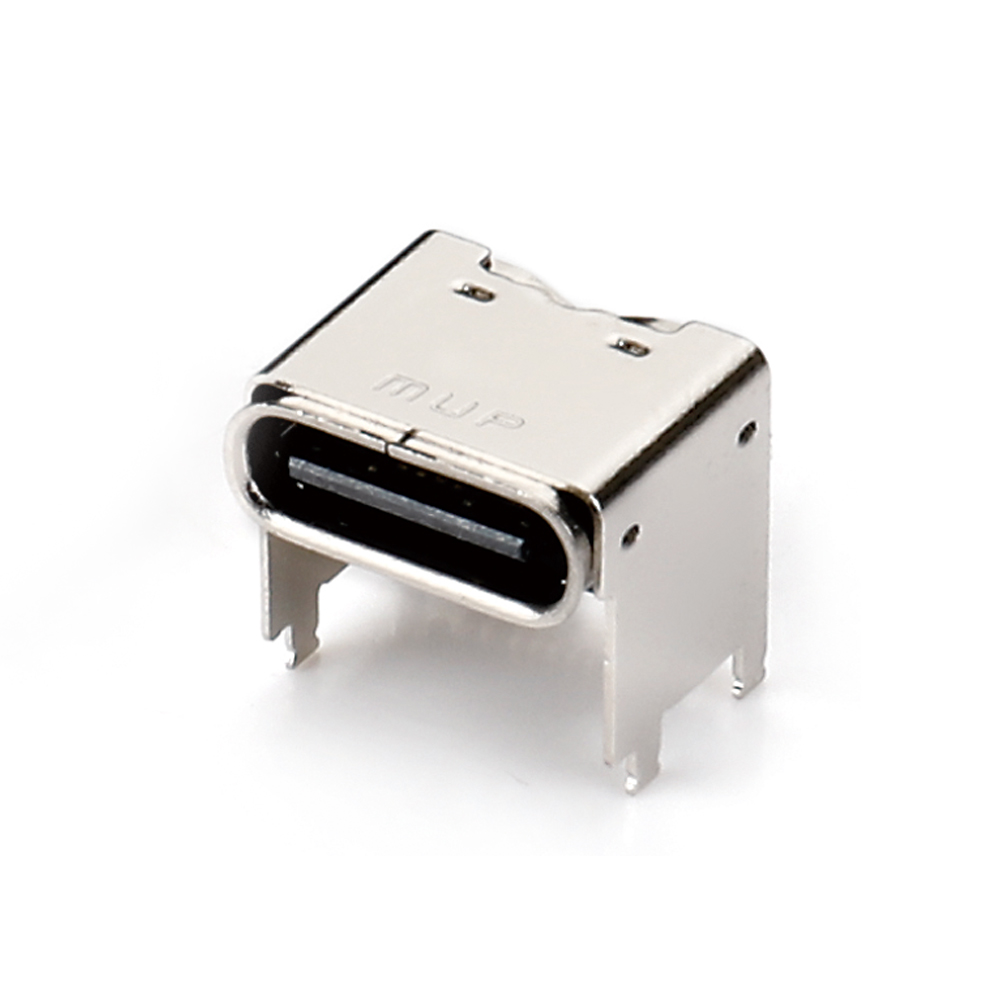

U20404-02
View Drawings Add to compare Request Samples
WeChat
Weibo
https://www.mupconnec...
Copy link
Specifications‌
  • Desc.
    USB2.0 PD 100W Stacked height 4.35 Dual-Shell
    Type
    Horizontal F
    Pins
    16
    Shell Mount
    Single-row SMT
    L*W*H mm
    8.00*9.47*7.76
  • CH mm
    CH5.9
    Ins. Depth
    4.70
    On Board
    7.76
    Mid Mount
    0.00
    Pin Length
    0.80
  • Shell Legs
    1.30
    MATL
    LCP
    G/P
    3
    Rating
    ★★★
Drawing
