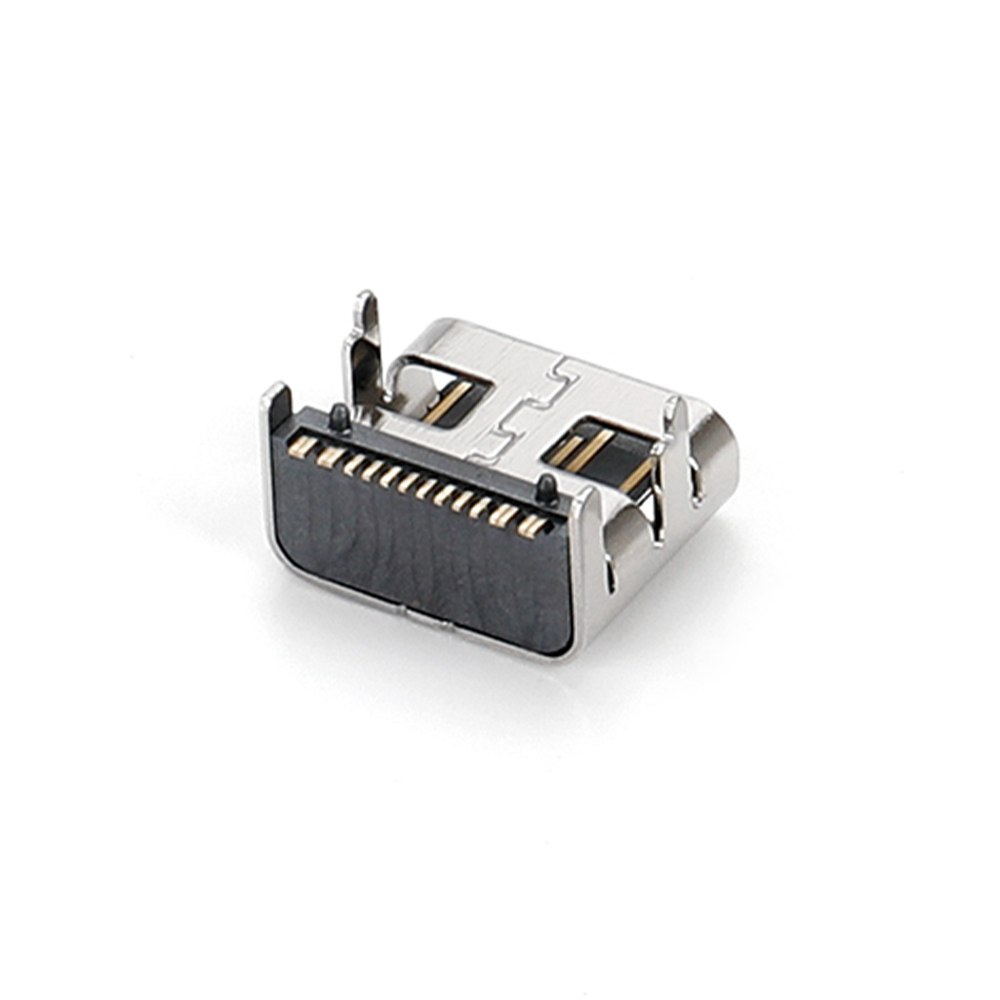

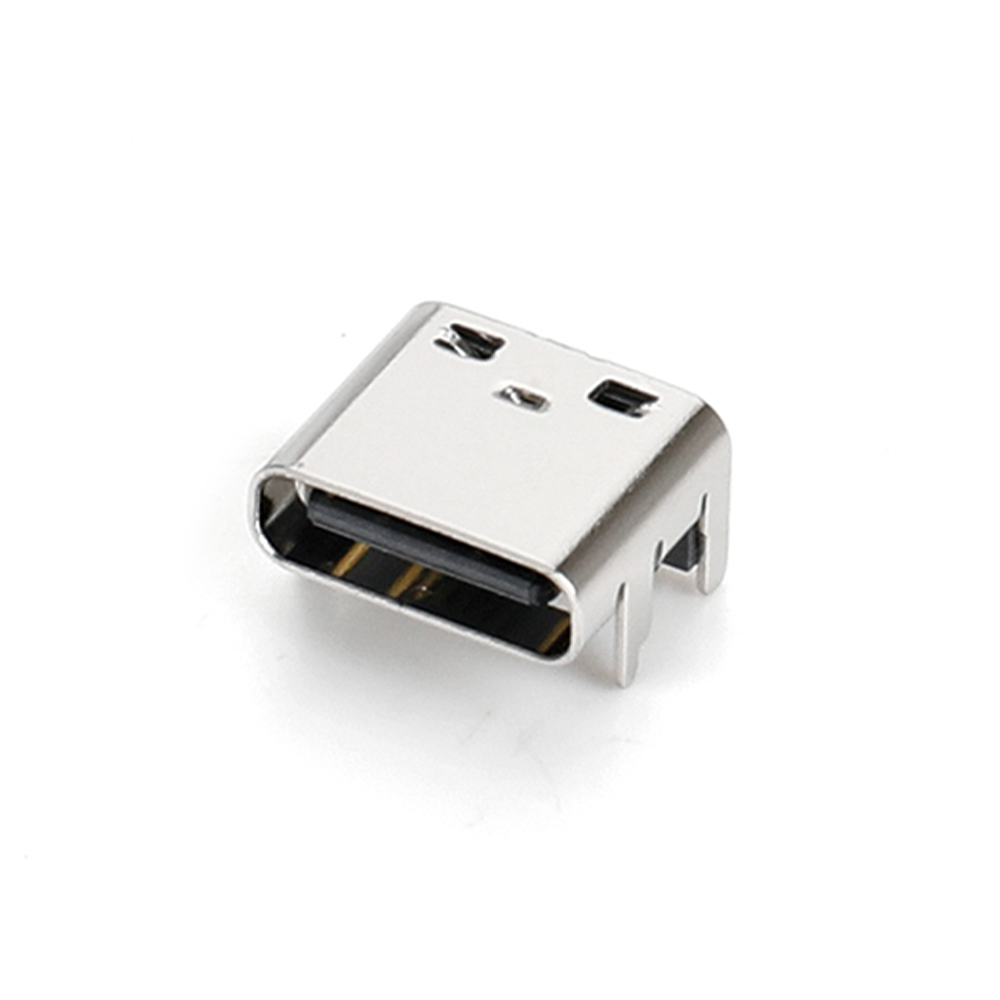

U20417-03

View Drawings

Add to compare

Request Samples

Share‌

WeChat

Weibo

Specifications‌

Desc.

USB2.0 PD 100W Stacked height 1.0

Type

Horizontal F

Pins

16

Shell Mount

Single-row SMT

L*W*H mm

7.3*8.94*4.25
CH mm

CH2.67

Ins. Depth

4.85

On Board

4.25

Mid Mount

0.00

Pin Length

0.60
Shell Legs

1.00

MATL

LCP

G/P

G/F

Rating

★★★
