HOME/ PRODUCTS/ USB Type C/ U22201-01/

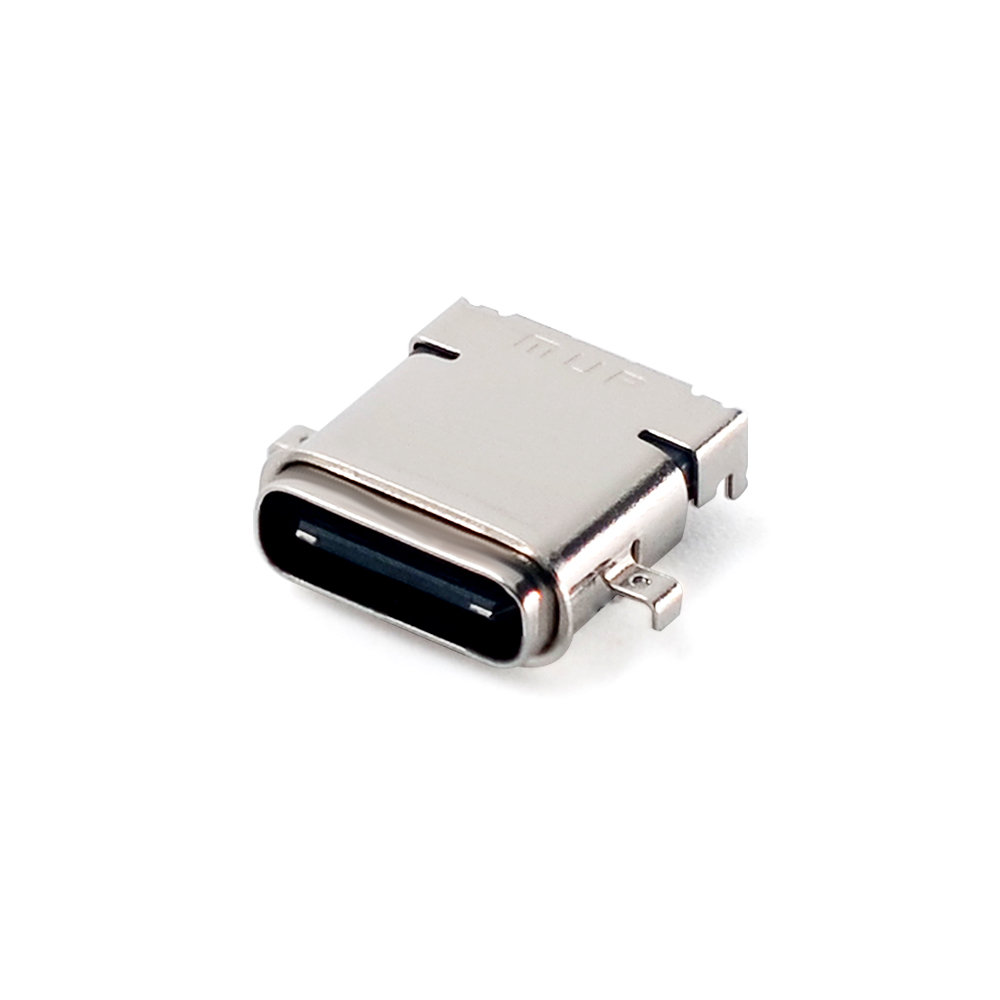

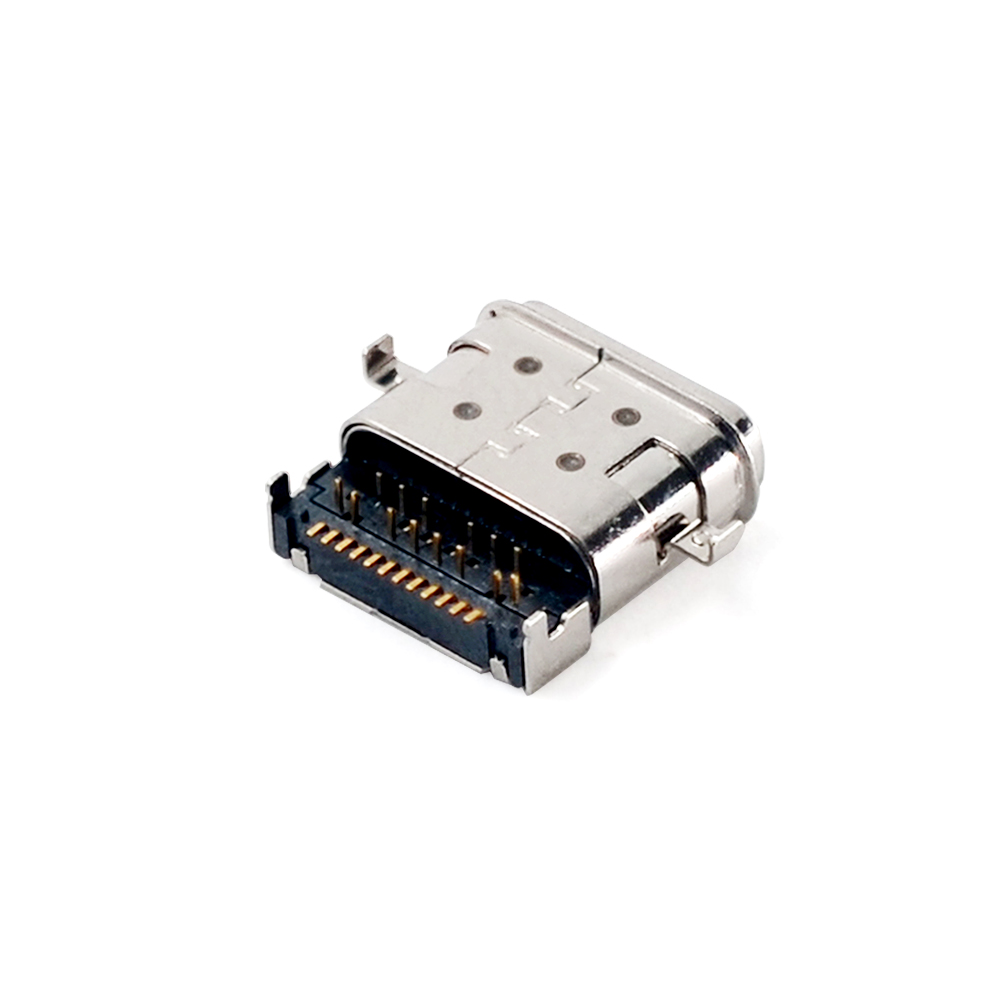

U22201-01
View Drawings Add to compare Request Samples
WeChat
Weibo
https://www.mupconnec...
Copy link
Specifications‌
  • Desc.
    USB3.1 Gen2 PD 100W Waterproof IPX7
    Type
    Waterproof F
    Pins
    24
    Shell Mount
    DIP+SMT
    L*W*H mm
    9.65*9.14*3.36
  • CH mm
    CH0.3
    Ins. Depth
    4.70
    On Board
    1.95
    Mid Mount
    1.37
    Pin Length
    0.75
  • Shell Legs
    0.75
    MATL
    LCP
    G/P
    3
    Rating
    ★★★★★
Drawing
