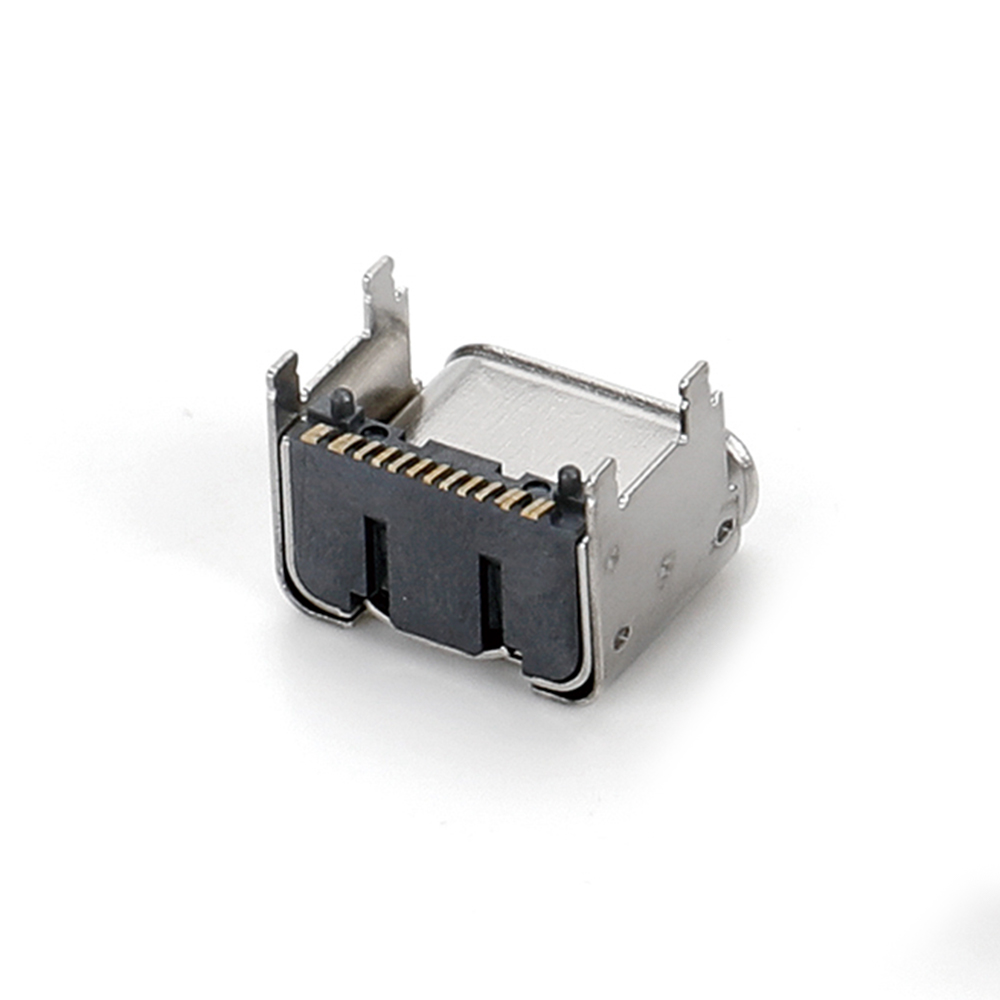

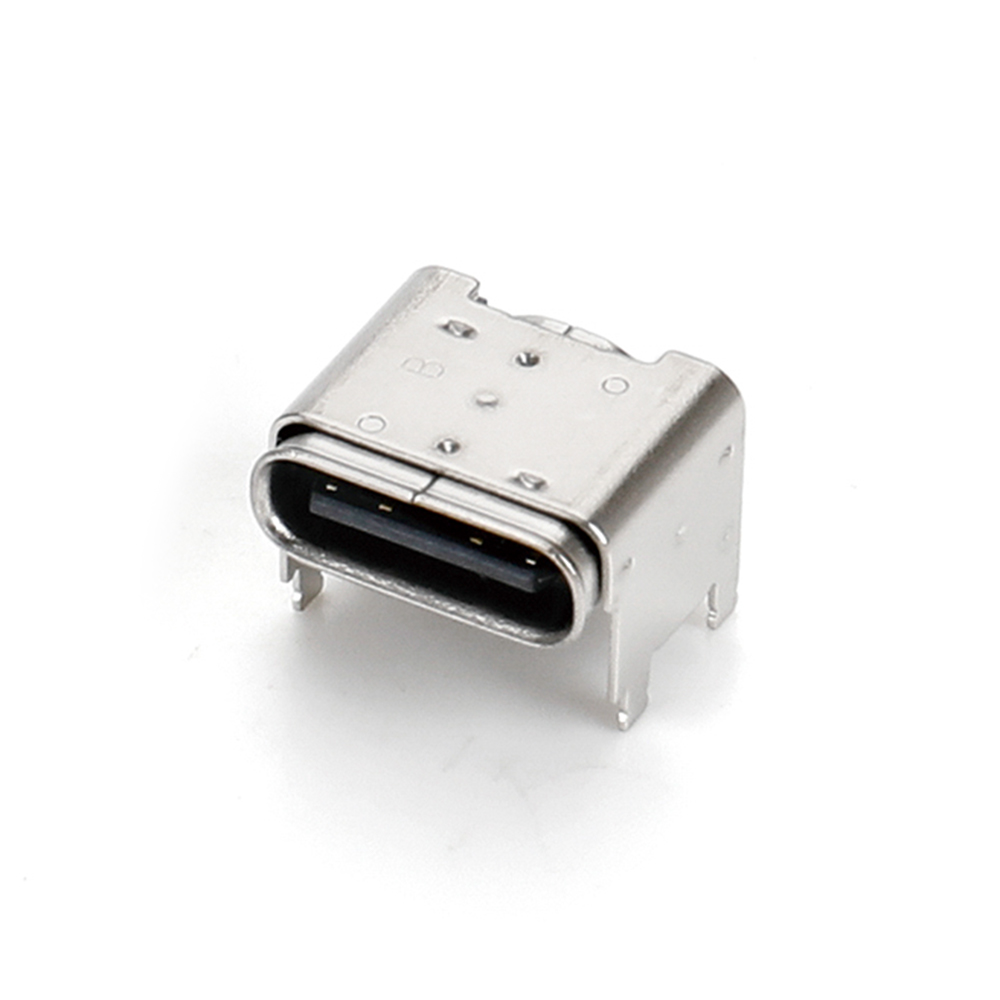

U20404-06
View Drawings Add to compare Request Samples
WeChat
Weibo
https://www.mupconnec...
Copy link
Specifications‌
  • Desc.
    USB2.0 PD 100W Stacked height 2.5 Dual-Shell
    Type
    Horizontal F
    Pins
    16
    Shell Mount
    Single-row SMT
    L*W*H mm
    8.00*9.47*5.91
  • CH mm
    CH4.05
    Ins. Depth
    4.70
    On Board
    5.91
    Mid Mount
    0.00
    Pin Length
    0.80
  • Shell Legs
    1.30
    MATL
    LCP
    G/P
    G/F
    Rating
    ★★★
Drawing
