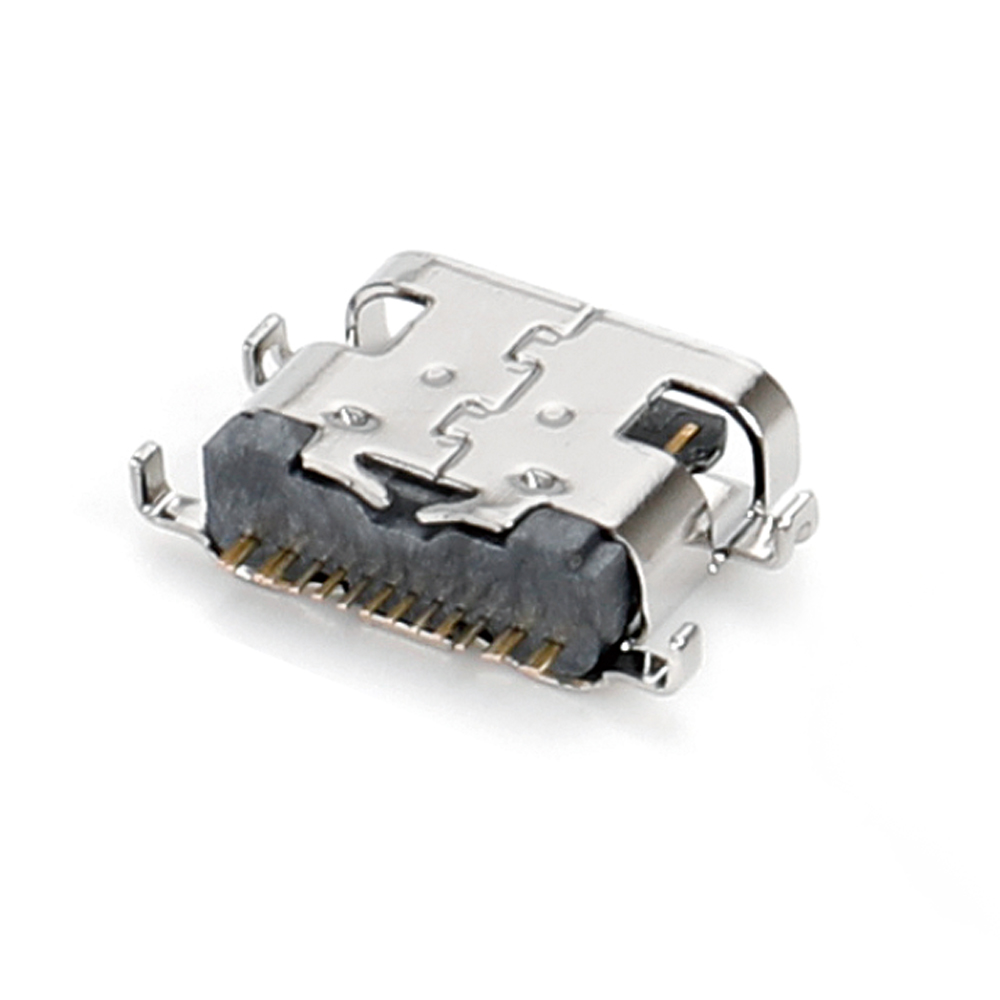

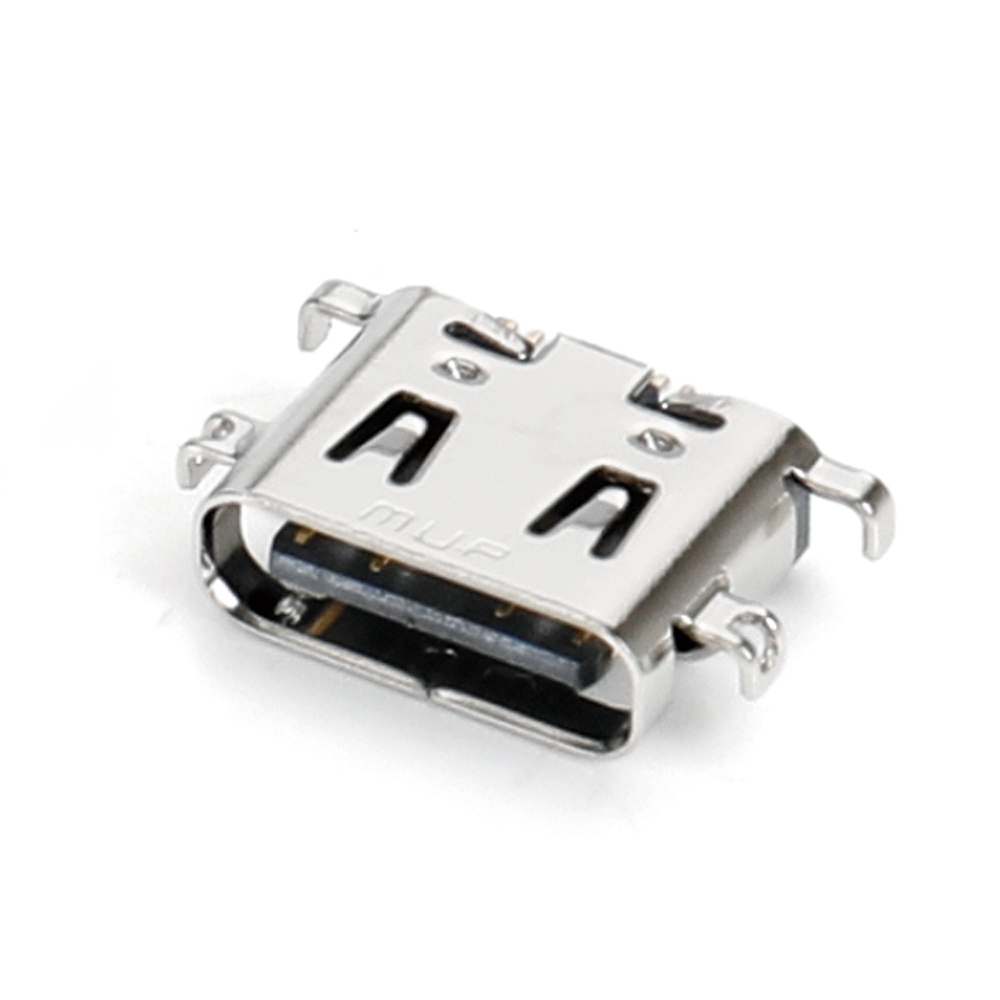

U22401-03

View Drawings

Add to compare

Request Samples

Share‌

WeChat

Weibo

Specifications‌

Desc.

USB2.0 PD 100W mid-mount 1.00

Type

Horizontal F

Pins

16

Shell Mount

Single-row SMT

L*W*H mm

6.50*8.94*3.16
CH mm

CH0.58

Ins. Depth

4.60

On Board

2.16

Mid Mount

1.00

Pin Length

0.70
Shell Legs

0.85

MATL

LCP

G/P

3

Rating

★★★

Drawing
